Solenoid Valve Specifications and Dimensions: 2P050 Series
$59.51
Port Size (NPT)
1/4″ Female NPT
3/8″ Female NPT
3/8″ Push-In Fitting (pictured)
Voltage
1 = 12VDC
2 = 24VDC
2A = 24VAC
3 = 110VAC
4 = 220VAC
ATEX = Explosion Proof Coil
Electrical Connection
G = Grommet
D = DIN (with LED)
Cv/Orifice
Orifice = 5mm
Services
Air, Water, Liquid
Features
2-Way, Normally Closed
Direct Acting
Body: Delrin Plastic
(customizable to any plastic)
Wetted Surfaces:
Delrin, Stainless Steel,
NBR, FKM O-Ring
Operating Temperature:
32 to 122°F
Operating Pressure:
Vacuum to 50PSI
Coil Power: 20W
Valve Symbol/Catalog
Data Sheet:
Description
| Specifications | |||||||
| Model | 2P050-1/4 | 2P050-3/8 | 2P050-3/8F | ||||
| Port Size | 1/4″ Female NPT
Threaded Conection |
3/8″ Female NPT
Threaded Conection |
3/8″ OD Tube
Push-In Connection |
||||
| Orifice | 5mm | ||||||
| Valve Type | 2-Way | ||||||
| Action | Direct Acting | ||||||
| De-Energized State | Normally Closed (NC) | ||||||
| Body Material |
|
||||||
| Seal Material | NBR (Buna), Silicone, Viton (FKM) Double Seals (Fitting Connection Only) | ||||||
| Operating Temperature | 32°F to 122°F (0°C to 50°C) | ||||||
| Operating Pressure | Vacuum to 50 PSI | ||||||
| Electrical Connection |
|
||||||
| Coil Power | 20W | ||||||
| Voltage Options |
|
||||||
| Voltage Tolerance | ±10% of Specified Voltage | ||||||
| Ingress Protection | IP65 | ||||||
| Insulation Class | H Class | ||||||
| Coil Duty | 100% ED, Continuous Duty | ||||||
| Installation | No Orientation Requirement
Optimum Position: Flow Horizontal and Solenoid Vertical |
||||||
| Service | Liquid, Potable Water, Air | ||||||

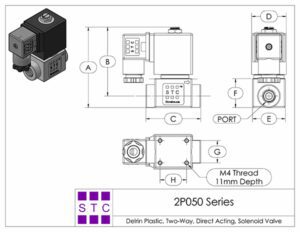

Dimensions
| 2P050 Series Solenoid Valve Dimensions | |||||||||
| Model | Port | A | B | C | D | E | F | G | H |
| 2P050-1/4 | 1/4″ Female NPT | 83.3 | 71.3 | 56.8 | 35.6 | 34.0 | 30.0 | 23.0 | 27.5 |
| 2P050-3/8 | 3/8″ Female NPT | 83.3 | 71.3 | 56.8 | 35.6 | 34.0 | 30.0 | 23.0 | 27.5 |
| 2P050-3/8F | 3/8″ OD Tube | 83.3 | 71.3 | 56.4 | 35.6 | 34.0 | 30.0 | 23.0 | 27.5 |
| Dimensions for Reference Use Only: Units in mm | |||||||||
The 2P050 valve is a two-way, normally closed, direct acting valve and does not require a minimum differential pressure to operate. As shown in the diagrams below, when the coil is de-energized (left diagram), the plunger rests on the main orifice and is held in place by the plunger spring force, sealing the valve. When the coil is energized (right diagram), the solenoid lifts the plunger and allows the working medium to flow through the orifice. The working medium and flow direction are indicated in purple in the diagrams.
Benefits:
- Can be used in food grade, sanitary, and chemical applications.
- The valve body can be customized to any type of plastic to meet specific operating conditions.
Features
- Double Viton O-ring for improved sealing at the tube inlet and outlet.
- The threaded armature top screws into the armature tube, and then the connection is welded together. The threaded connection combined with welding allows for a longer lifespan of the valve.
- The armature tube is machined from a solid stainless steel bar – with no additional joints or connections, it can withstand higher pressure and more lifecycles.
Operation Diagram
Additional information
| Part No. | 2P025-1/2P050-1/48, 2P050-3/8, 2P050-3/8F |
|---|
