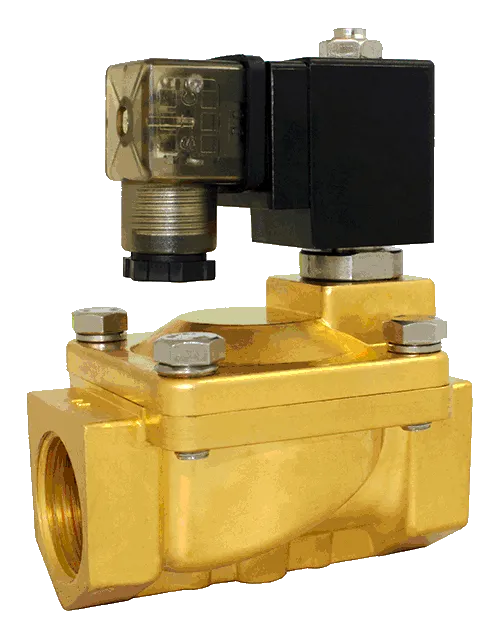

Solenoid Valve Specifications and Dimensions: 2RO130-500 and 2RSO130-500 Series

• Port Size (NPT): 3/8″ NPT

  1/2″ NPT

  3/4″ NPT

  1″ NPT

  1 1/4″ NPT

  1 1/2″ NPT

  2″ NPT

• Voltage:
  • 1 = 12VDC
  • 2 = 24VDC
  • 2A = 24VAC
  • 3 = 110VAC
  • 4 = 220VAC
  • ATEX = Explosion Proof Coil
• Electrical Connection:
  • D = DIN
• Cv/Orifice:
  • Cv = 4.5

    Orifice = 13mm

  • Cv = 4.5

    Orifice = 15mm

  • Cv = 7.6

    Orifice = 20mm

  • Cv = 12

    Orifice = 25mm

  • Cv = 22

    Orifice = 32mm

  • Cv = 30

    Orifice = 40mm

  • Cv = 48

    Orifice = 50mm

• Services:
  • Air, Gas, Liquid, Oil, Water
• Features:
  • 2-Way, Normally Open

    Pilot Diaphragm

    Body: Brass

    Seal: NBR

    Option: FKM, EPDM

    Operating Temperature:

    NBR Seal: 14 to 176°F

    FKM Seal: 14 to 266°F

    Ambient Temperature:

    23 to 110°F

    Operating Pressure:

    AC: 4.5 to 185PSI (3/8″-1″)

    AC: 4.5 to 116PSI (1 1/4″-2″)

    DC: 4.5 to 87PSI

    Coil Power: 12 to 20W

    Coil: Class H, IP65

• Valve Symbol / Catalog:

Data Sheet:

2RO130-500.PDF

Download Drawings
