Stainless Steel Full Port Ball Valves(V2)
Price range: $34.27 through $196.83
316 Stainless Steel
FNPT
Description
| V2 Valve Specifications | |
| Two Piece Full Port 316 Stainless Steel Ball Valve | |
| Maximum Operating Pressure: 1/4″ to 2″ — 1000PSI @ 100°F WOG
2 1/2″ to 3″ — 800PSI @ 100°F WOG |
|
| Temperature Range: -60 to 450°F | |
| End Connections: NPT Threaded | |
| Design Standard ASME: B16.34, GB/T12237
Test & Inspection: API1598, JB/T9092 |
| Main Parts & Materials |  |
|||
| No. | Part Name | Material | Quantity | |
| 1 | Seat | PTFE | 2 | |
| 2 | Ball | SS316/CF8M | 1 | |
| 3 | Joint Gasket | PTFE | 1 | |
| 4 | Cap | SS316 | 1 | |
| 5 | Body | SS316 | 1 | |
| 6 | Stem | SS316 | 1 | |
| 7 | Thrust Washer | PTFE | 1 | |
| 8 | Stem Packing | PTFE | 1 | |
| 9 | Gland Nut | SS304 | 1 | |
| 10 | Stem Washer | SS304 | 1 | |
| 11 | Stem Nut | SS304 | 1 | |
| 12 | Handle Cover | PLASTIC | 1 | |
| 13 | Handle | SS304 | 1 | |
 |
|||||||
| V2 Stainless Steel Ball Valve Dimensions | |||||||
| Size | d | L | H | W | |||
| 1/4″ | 11.6 | 55 | 48 | 103 | |||
| 3/8″ | 12.7 | 55 | 48 | 103 | |||
| 1/2″ | 15 | 63.5 | 50 | 103 | |||
| 3/4″ | 20 | 75 | 57 | 125 | |||
| 1″ | 25.4 | 88 | 69 | 145 | |||
| 1 1/4″ | 32 | 103 | 73 | 145 | |||
| 1 1/2″ | 38 | 110 | 83 | 190 | |||
| 2″ | 50.8 | 124 | 92 | 190 | |||
| 2 1/2″ | 65 | 167 | 136 | 250 | |||
| 3″ | 76 | 192 | 149 | 250 | |||
Additional information
| Size | 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" |
|---|
Related products
-
Stainless Steel Full Port Ball Valves(V3C)
Price range: $153.47 through $1,880.23 Select options This product has multiple variants. The options may be chosen on the product page -

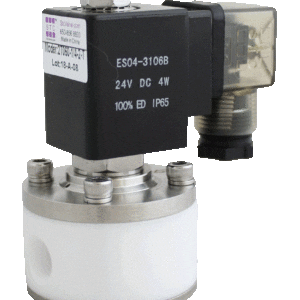

Solenoid Valve Specifications and Dimensions: 2T060 Series
