Name: Stainless Steel V1 Ball Valve
SKU: 67385
Availability: InStock

Description

V1 Valve Specifications
One Piece Reduced Port 316 Stainless Steel Ball Valve

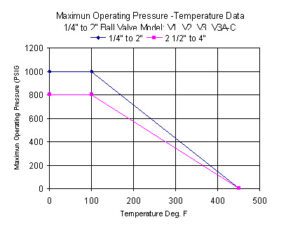

Maximum Operating Pressure: 1000PSIG @ 100°F WOG
Operating Temperature Range: -60 to 450°F
End Connections: NPT Threaded
Design Standard ASME: B16.34, GB/T12237 Test & Inspection: API1598, JB/T9092

Main Parts & Materials
No.	Part Name	Material	Quantity
1	Seat	PTFE	2
2	Ball	SS316/CF8M	1
3	Joint Gasket	PTFE	1
4	Cap	SS316	1
5	Body	SS316	1
6	Stem	SS316	1
7	Thrust Washer	PTFE	1
8	Stem Packing	PTFE	1
9	Gland Nut	SS304	1
10	Stem Washer	SS304	1
11	Stem Nut	SS304	1
12	Handle Cover	Plastic	1
13	Handle	SS304	1


V1 Stainless Steel Ball Valve Dimensions
Dimension	d	L	H	W	Wt (kg)
1/4″	5	39	35	64	0.07
3/8″	7	44	37	70	0.1
1/2″	9.2	56.5	43.5	90	0.16
3/4″	12.5	58	47	90	0.25
1″	15	70	50	103	0.43
1 1/4″	20	78	57	103	0.7
1 1/2″	24.5	83	69	127	0.83
2″	32	100	74.5	127	1.5

Additional information

Size	1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
